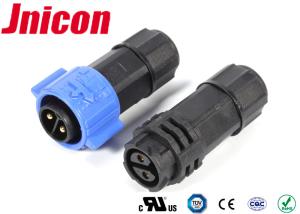

2Pin 20A Wire To Wire Waterproof Connector For Power
Features
1. 2pin, 3pin, 9pin, 22 pin are available.
2. The max.cable diameter: 11.0 mm.
3. Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
4. protection level: IP67
5. Screw locking style,easy to assemble. It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
Technical Specification
| Connector Model: | M19 waterproof connector 2pin |
| Waterproof level: | IP67 |
| Cable specification: | 20AWG-12AWG |
| Cable diameter range: | 4.5mm-12mm(18AWG-12AWG) |
| Core number: | 2 pin to 22pin |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 300V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Service | Cable length could be customized |
Main characteristics:
| Sealed against dust and fluid (IP67) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover to male and female are available |
Application industries:
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery charging | Automation |
| Solar energy | Ship equipment | Agriculture |
| Electric power equipment | Vehicles | Ebike/motorcycle |
| Communications | Pool lights | Transportation |
Product Advantage:
Cable to cable connectors could be a good option for outdoor indoor electrical power extension, well protect your equipments or lights fixtures, widely used for landscape lights, wall washer bar, led display, industrial equipment or machine.
